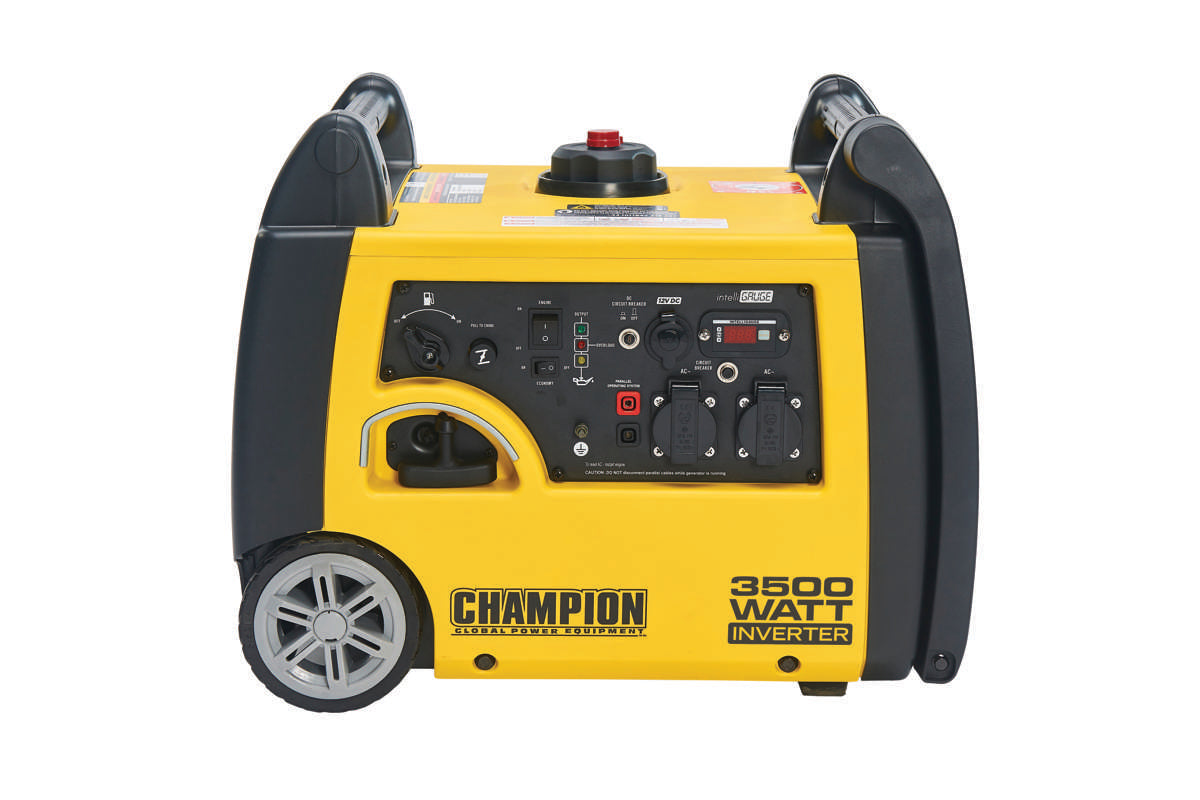

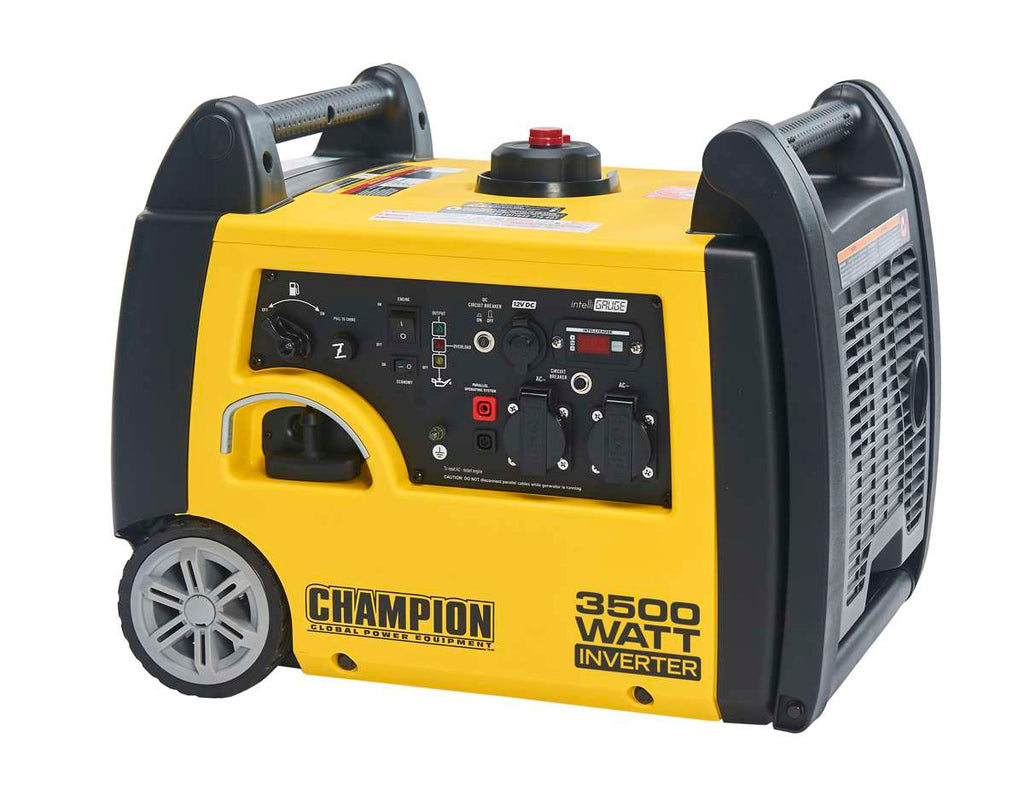

Champion 3500 Watt Inverter Petrol Generator

Discontinued
SKU: 73001I-E-EU EAN: 5060423981077

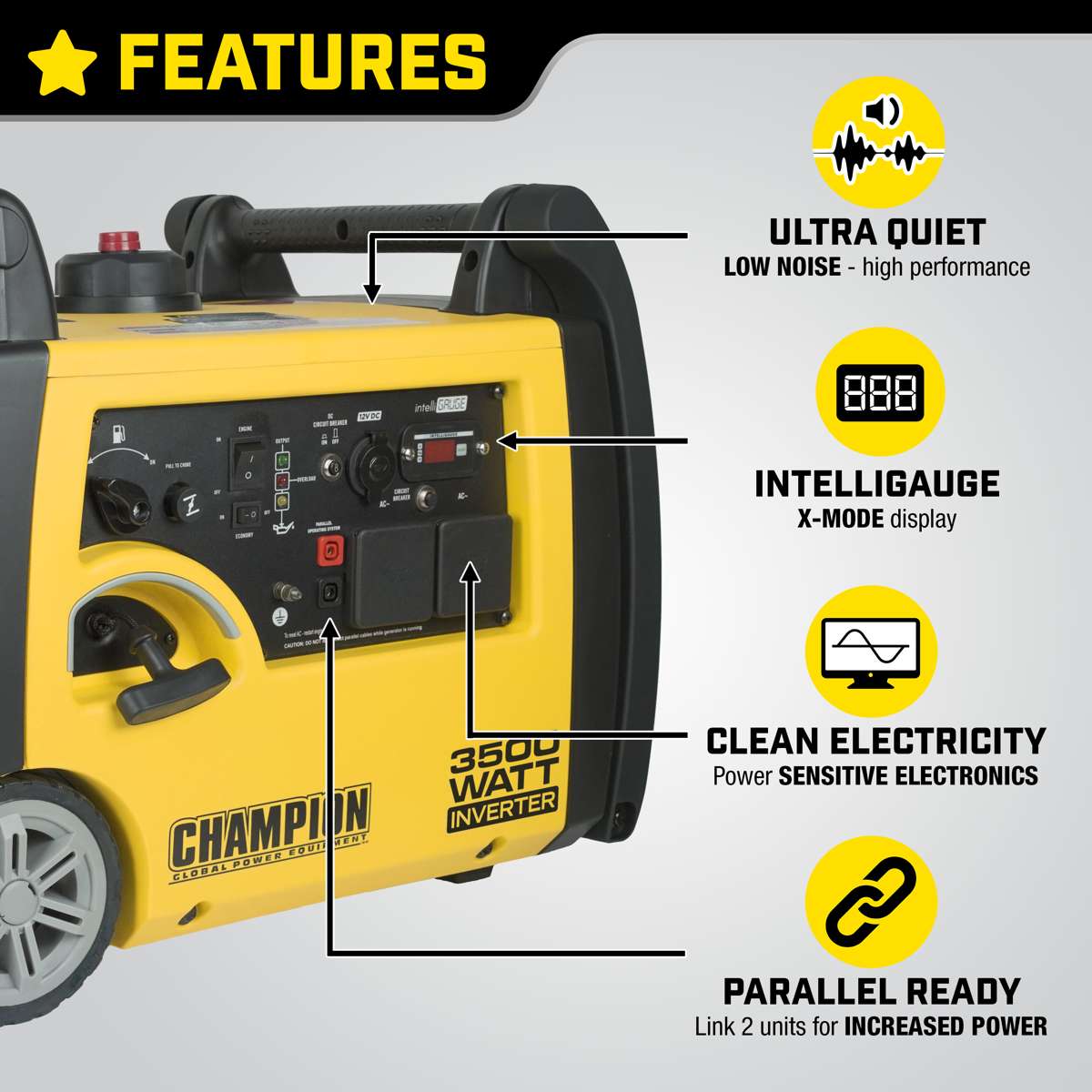

Features

  • Petrol powered 192cc engine with up to 8 hours of run time (at 25% load)
  • Confidently connect your electronics with true sine wave technology (< 3% THD)
  • OHV Champion engine produces 3500 Maximum Watts, 3200 Running Watts

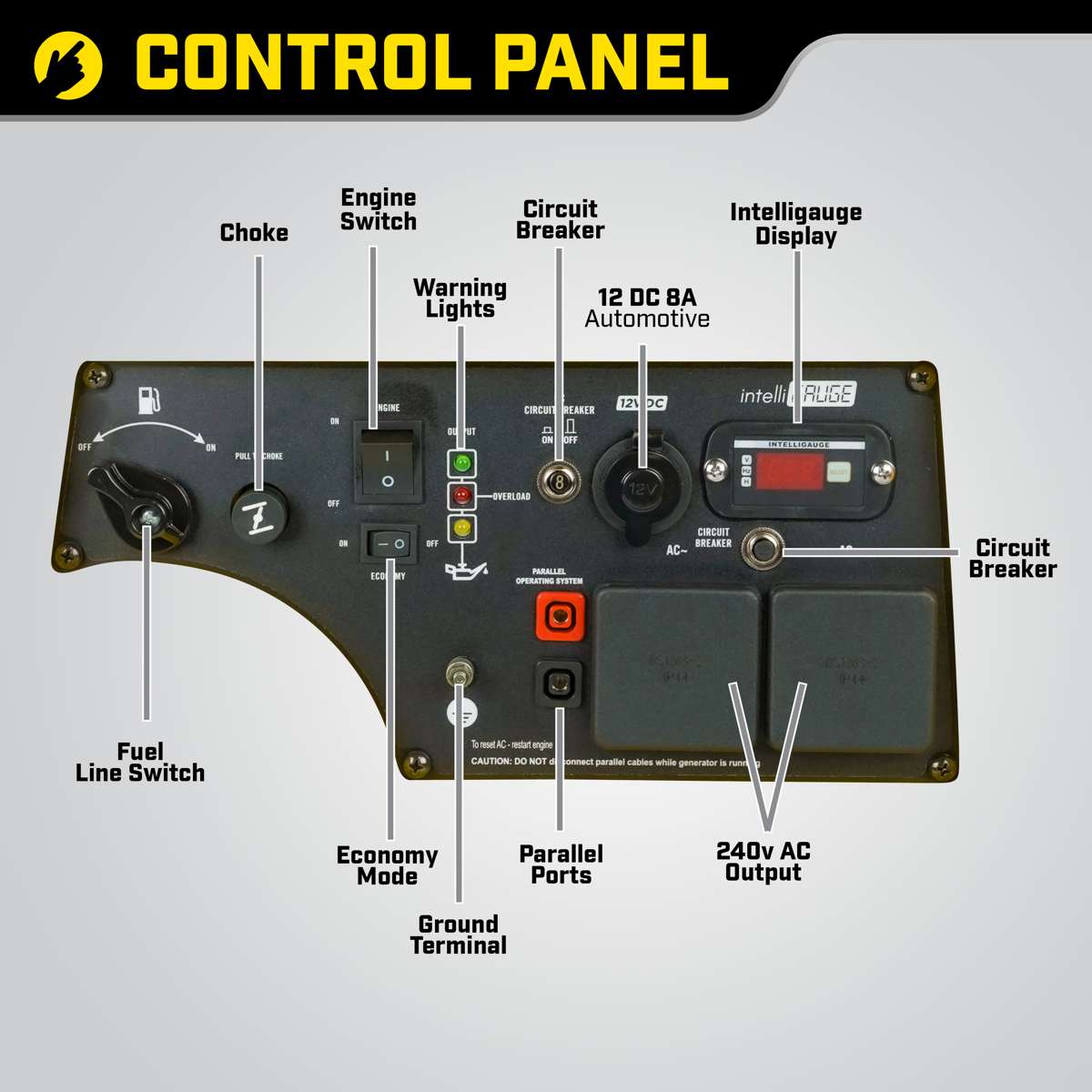

  • Muliple outlets including 2 x 220v 16amp outlet and a 12V DC outlet
  • Quiet operation at only 58 dBA at 7m

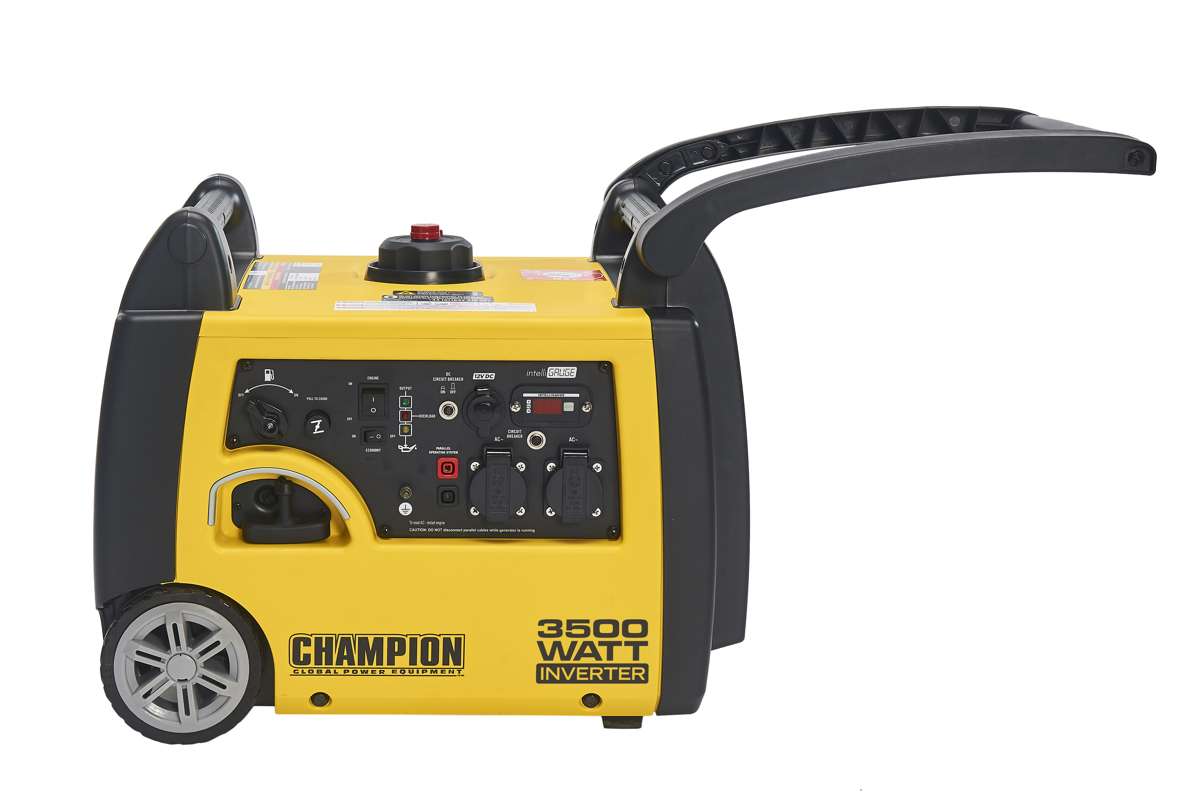

  • Built-in Handle and Wheel Kit
  • Designed with a low oil shut-off sensor, this inverter has a 600ml oil capacity
  • Overload protection and economy mode to save fuel
  • Connect this inverter with another Champion 3500-watt inverter for 30 amps of power (with the optional Parallel Kit)

Now with a new improved 192cc engine and higher output. Champion generators are in a league of their own with regards to engine technology and features.

All Champion engines are designed, engineered and tested in the most demanding environments.

Champion Inverters boast a unique feature with a digital 15 second power delay, which allows sensitive equipment to be left plugged in on start-up & shut down, a component unlike any other Generator.

Another outstanding feature is the start up current. It has a special millisecond peak current of 15.8 amp which is ideal for RV, motor homes and caravans,  allowing their equipment to start up without tripping or overloading the generator (especially running A/C units or similar).

The Champion 73001I-E Portable Inverter Petrol Generator is powered by a 192cc Champion single cylinder, 4-stroke OHV engine that produces 3500 max watts.

With a 6 litre fuel tank this unit can run up to 8 hours at 25% load. Our OHV engine is equipped with a low oil shut-off sensor and designed for long life and easy maintenance.

This unit also contains true sine wave inverter technology making it safe to power all of you sensitive electronic devices.

Ideal for camping trips, hunting, travelling, picnics, tailgating, and light jobs around the house. The built-in handle and wheel kit make it easily portable.

    3 Year Limited Warranty

    What Will it Power? Advanced, true sine wave inverter technology provides safe, reliable power to computers and other sensitive electrical devices. Ideal for powering a small appliance and/or a few household items.


    All newly manufactured products are EU Stage V Compliant.

    Starting Watts3750
    Max Watts3500
    Rated Watts3200
    Fuelpetrol
    Noise Level @ 7m (dBA)58
    AC Load2 x 220 16amp
    Socket Rating16
    DC Output12 / 8.3
    Start TypeRecoil
    Engine CC192.0
    Engine HP6.0
    Engine TypeOHV Champion
    PhaseSingle
    RPMAutomatic (Based on load)
    Power Factor1.0

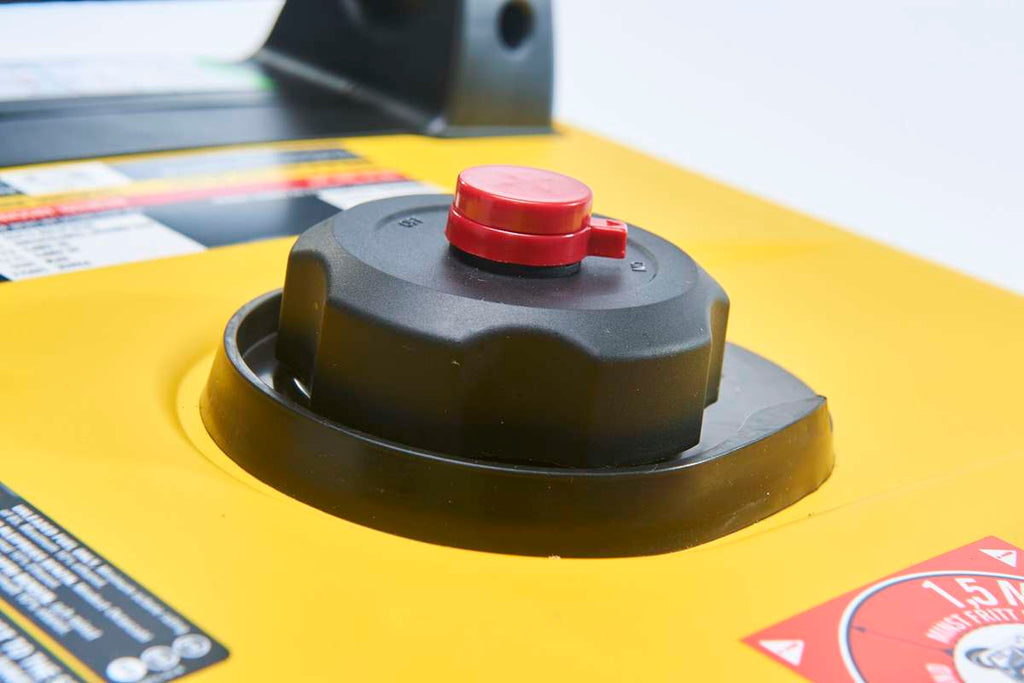

    Fuel Capacity (L)6.0
    Oil Tank (ml)600
    Choke TYpeManual
    Low Oil ShutoffAutomatic
    Overload ProtectionYes

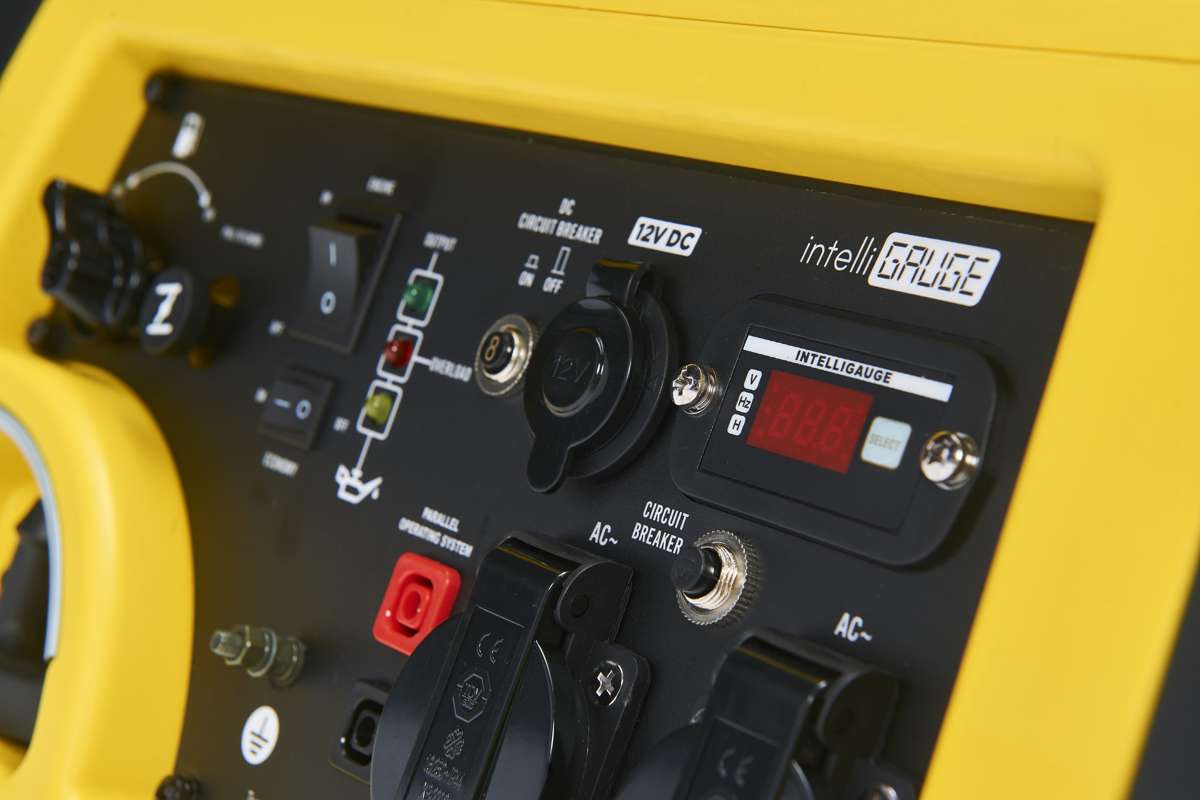

    IntelligaugeYes
    Parallel ConnectivityYes
    USB ConnectionYes

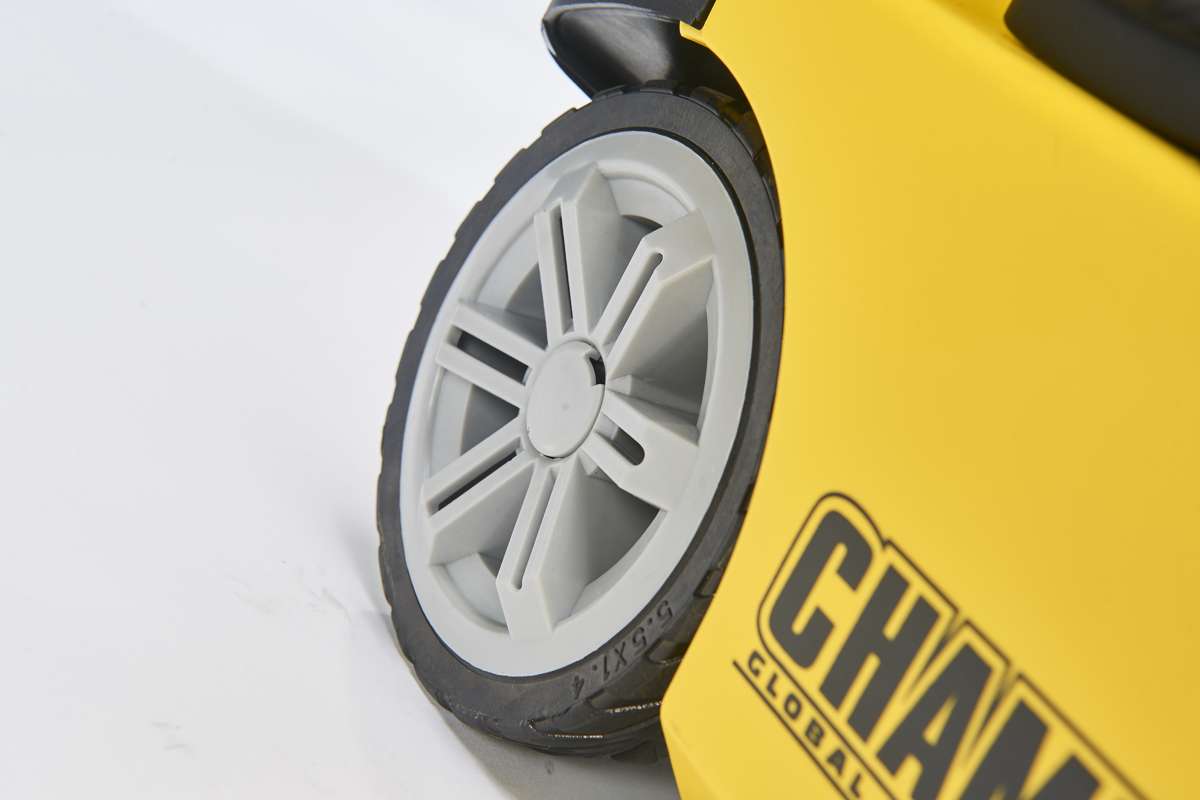

    WheelsNever Flat
    EmissionsEC
    Warranty (Years)3
    CertificationCE, E10 Petrol Compliant, EU Stage V
    IP RatingIP23M
    Weight (kg)36.9

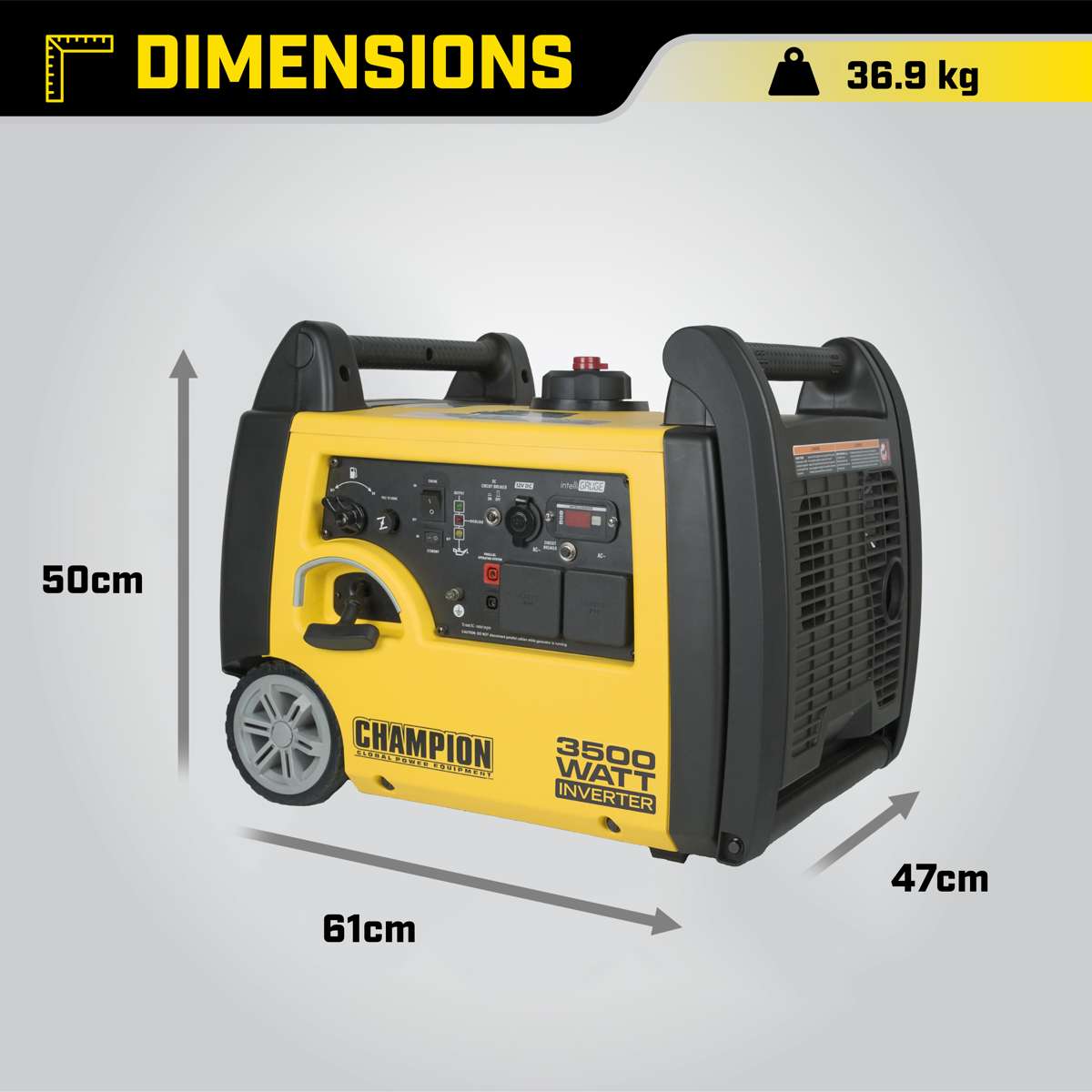

    Dimensions mm (HxLxW)500 x 610 x 470
    Fuel Consumption @ 25% load0.75 L/Hour (Petrol)
    Fuel Consumption @ 50% load0.92 L/Hour (Petrol)
    Fuel Consumption @ 100% load1.6 L/Hour (Petrol)

    What's in the box

    • Champion 3500 Watt Inverter Petrol Generator
    • Smart Charger
    • 12V DC USB Adapter
    • 12V DC Battery Charging Cable
    • Oil Funnel
    • Wrench
    • Operating manual
    Champion 3500 Watt Inverter Petrol Generator User Manual Download
    Champion 3500 Watt Inverter Petrol Generator Technical Drawing Download
    Champion 3500 Watt Inverter Petrol Generator Brochure Download

    Use this guide to get an approximation of the wattage required to run your equipment.

    Only add Watts together if you plan on using the products at the same time. For a more in-depth wattage review, use our handy Wattage Calculator.

    HOME APPLIANCES
    Machine Power in Watts Starting Coefficient
    Coffee Maker 750-1050 1
    Deep Freeze 90-400 3+
    Fryer 1800-2000 1
    Grill 1000-2500 1
    Hair Dryer 1800-2200 1
    Microwave Oven 1200-1600 2
    Mixer 300-700 1
    Oven 1800-3000 1
    Refrigerator 50-250 3
    Steam Iron 1400-2260 1
    Toaster 850-1150 1
    Tumble Dryer 1200-2500 1
    Vacuum Cleaner 700-1800 1
    Washing Machine 2100-2400 1.5
    LIGHTING - TV - HIFI - COMPUTER
    Machine Power in Watts Starting Coefficient
    Desk Lamp 50-150 1
    Radio 50-150 1
    TV 100-350 1
    WORKSHOP TOOLS
    Machine Power in Watts Starting Coefficient
    Angle Grinder 500-900 2
    Cement Mixer 500-850 3
    Circular Saw 1000-1600 1.5
    Compressor 1200-2500 3+
    Drill 500-1100 1
    Finishing Sander 135-350 1
    Grinder 120-400 1.5
    Hammer Drill 600-800 1
    High Pressure Washer 1200-3000 3
    Hot Air Gun 1600-2000 1
    Jig Saw 350-750 1
    Orbital Sander 300-450 1
    Peeling Machine 1800-2000 1
    Planer 470-750 1
    Router 800-1300 1
    Spray Gun 95-750 1
    GARDEN TOOLS
    Machine Power in Watts Starting Coefficient
    Chain Saw 1400-1800 2
    Hedge Trimmer 400-800 2
    Lawn Mower 300-1600 2
    Shredder 700-2500 2
    String Trimmer 200-600 2
    OTHER
    Machine Power in Watts Starting Coefficient
    Air-conditioner 500-2500 3+
    Heating 1000-1800 1



    (Champion Generators is a trading brand of Winch Solutions Ltd.)

    Warranty Qualifications

    We at Champion understand the importance of warranty for service & repair, we are now offering a standard 2 Year (Warrior Diesel & selected Champion products) & 3 year warranty (Champion generator models Only) .

    Please view the limitations below and read the full T&C’s about the warranty offered on a particular product.



    Repair / Replacement Warranty

    Champion equipment (selected Champion products) warrants to the original purchaser up to 3 Years for domestic usage that the mechanical and electrical components will be free of defects in material and workmanship for a period of One (1) year [Parts and Labour] Year Two (2) and Year Three (3) [Parts Only] from the original date of purchase or a 1000 hours which ever comes first.

    Industrial & Commercial Use Year One (1) [Parts and Labour] and Year Two (2) [Parts Only] or 1000 hours which ever comes first.

    Warrior branded diesel generators warrants to the original purchaser up to 2 Years for domestic usage that the mechanical and electrical components will be free of defects in material and workmanship for a period of Year One (1)  [Parts and Labour] Year Two (2) [Parts Only] from the original date of purchase or 1000 hours which ever comes first.

    Industrial & Commercial Use One Year (1) [Parts and Labour] or 500 hours which ever comes first.

    Transportation charges on any product or part(s) submitted for repair or replacement under this warranty are the sole responsibility of the purchaser. This warranty only applies to the original purchaser and is not transferable.

    Warranty Exclusions

    This warranty DOES NOT cover the following:

    Normal Wear

    Your product needs periodic parts and service to perform well. This warranty does not cover repair when normal use has exhausted the life of a part or the equipment as a whole.

    Installation, Use and Maintenance

    This warranty will be voided and (or) not apply to parts or labour if your product is deemed to have been misused, neglected, involved in an accident, abused, overloaded beyond the generator’s limits, modified (Incl exhaust extension & filtration), installed improperly (Any out building, sheds, garages, confined spaces or vehicles), connected incorrectly to any electrical component or used for hire purposes. Normal maintenance is not covered by this warranty.

    Other Exclusions

    This warranty excludes:
    – cosmetic defects such as paint, decals, Stickers
    – worn parts including piston & rings, spark plugs, filters
    – accessory parts including funnels, spanners, spark plug tubes, stands, wheels, recoil assemblies
    - any electrical component other than main control unit like wiring, fuses, connectors, switches, dials, displays and knobs.
    - all hoses, pipes Reducing valves and Regulators (Plastic, Rubber, Copper or Steel)
    – failures due to acts of God and other force majeure events beyond the manufacturer’s control
    – problems caused by parts that are not original Champion Power Equipment parts
    - alteration or modification(s) made by any party other than the manufacturer including exhaust extension and filtration systems.
    - any third party electrical equipment

    12v Battery

    – All batteries supplied Over 1 Year Old.

    Suitable Transfer Switch

    Any MTS (Manual Transfer) & ATS (Automatic Transfer) systems other that ones supplied by ourselves under WARRIOR or CHAMPION will not be considered suitable and will invalidate all warranties given. Please contact us direct before installing any Transfer system.

    Limits of Implied Warranty and Consequential Damage

    Winch Solutions Ltd (CG) disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental or consequential claim costs by anyone using this product.

    THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

    A unit provided as an exchange will be subject to the warranty of the original unit. The length of the warranty governing the exchanged unit will remain calculated by reference to the purchase date of the original unit. This warranty gives you certain legal rights which may change from country to country. Your country may also have other rights you may be entitled to that are not listed within this warranty.

    To keep your Champion Generator in good running order, please adhere to the service guide below.

    This guide can also be found in your Owners Manual.



    Every 8 hours or prior to each use
    Check oil level
    Clean around air intake and muffler
    First 5 hours (break in)
    Change oil
    Every 50 hours or annually
    Clean air filter
    Change oil if operating under heavy load or in hot environments
    Every 100 hours or annually
    Change oil
    Clean/adjust spark plug
    Clean spark arrestor
    Clean fuel valve filter*
    Every 250 hours
    Clean combustion chamber*
    Check/adjust valve clearance*
    Every 3 years
    Replace fuel line*

    * To be performed by knowledgeable, experienced owners or CPE certified service centers.
