This newly designed kit is intended for the use with Champion Power Equipment inverters 92001i, ideally should be used with at least one inverter 92001i and(or) combination of the any other Champion inverter with the feature of the square paralink sockets.

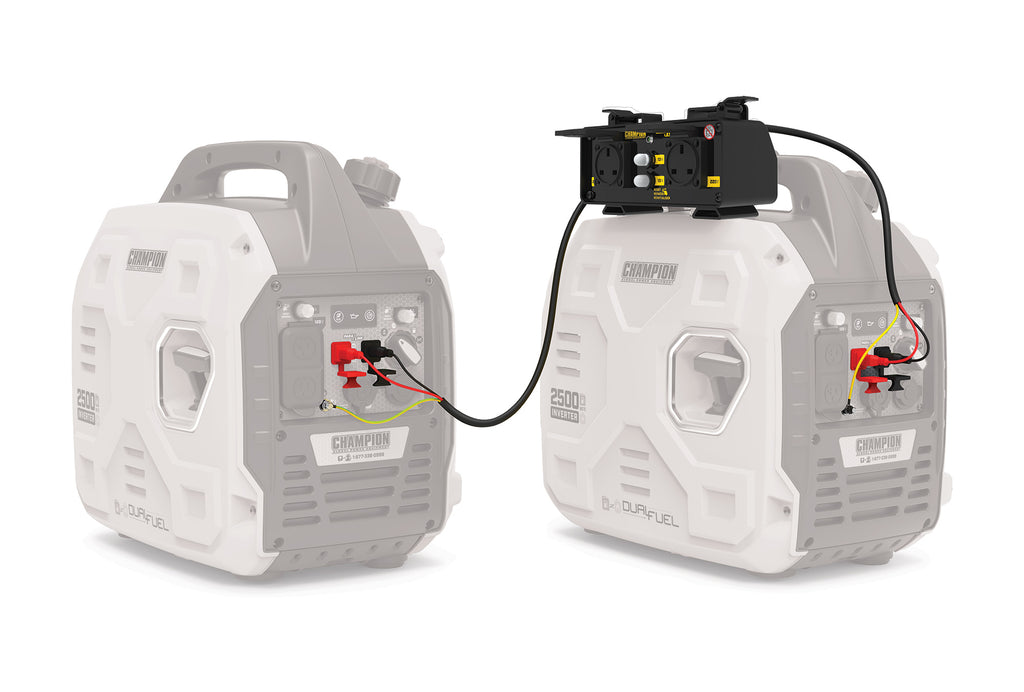

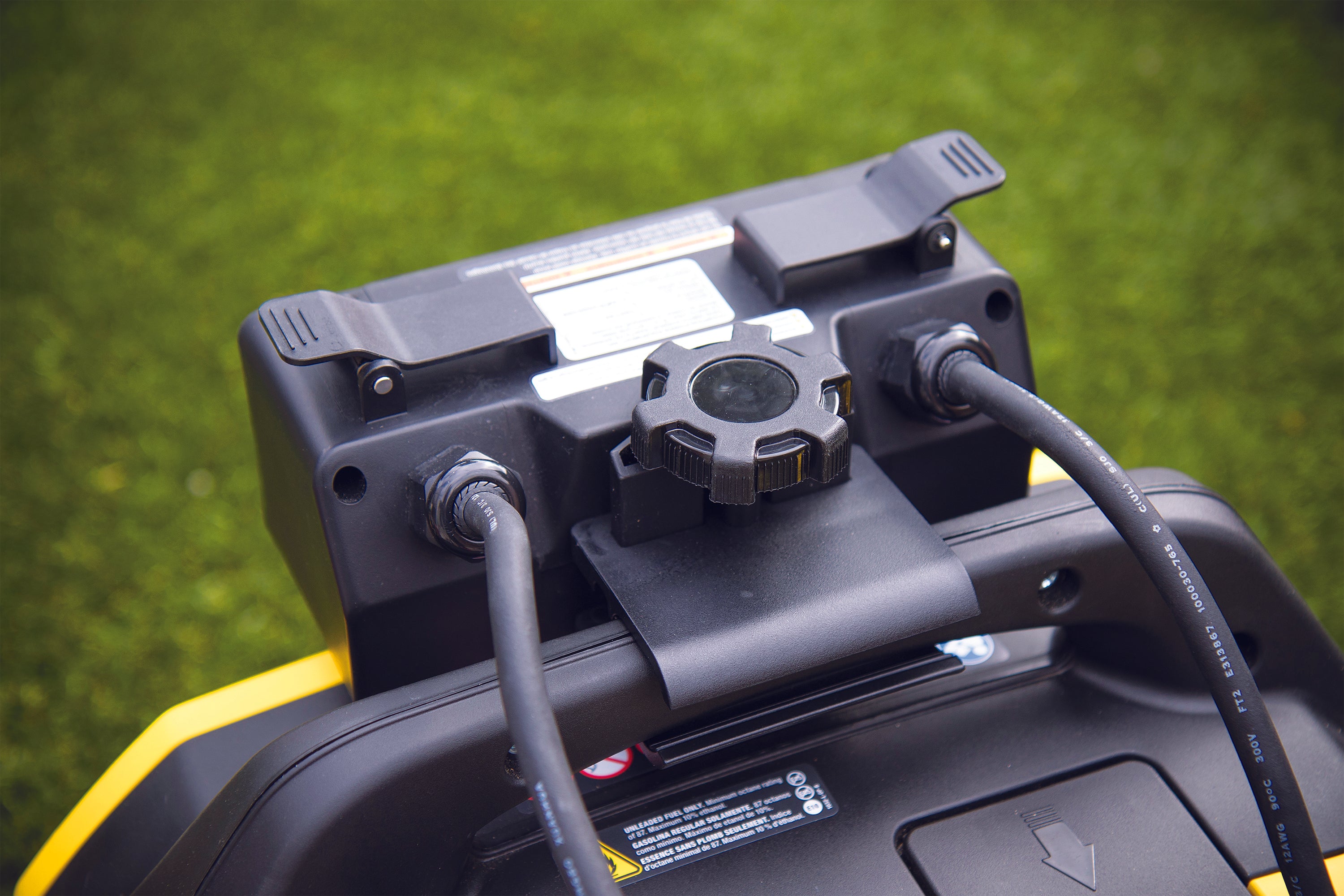

The total output of this kit will depend on the size of the inverters connected to it. With a dual clip design it will allow the two generators to be positioned horizontally in V formation securely whilst running.

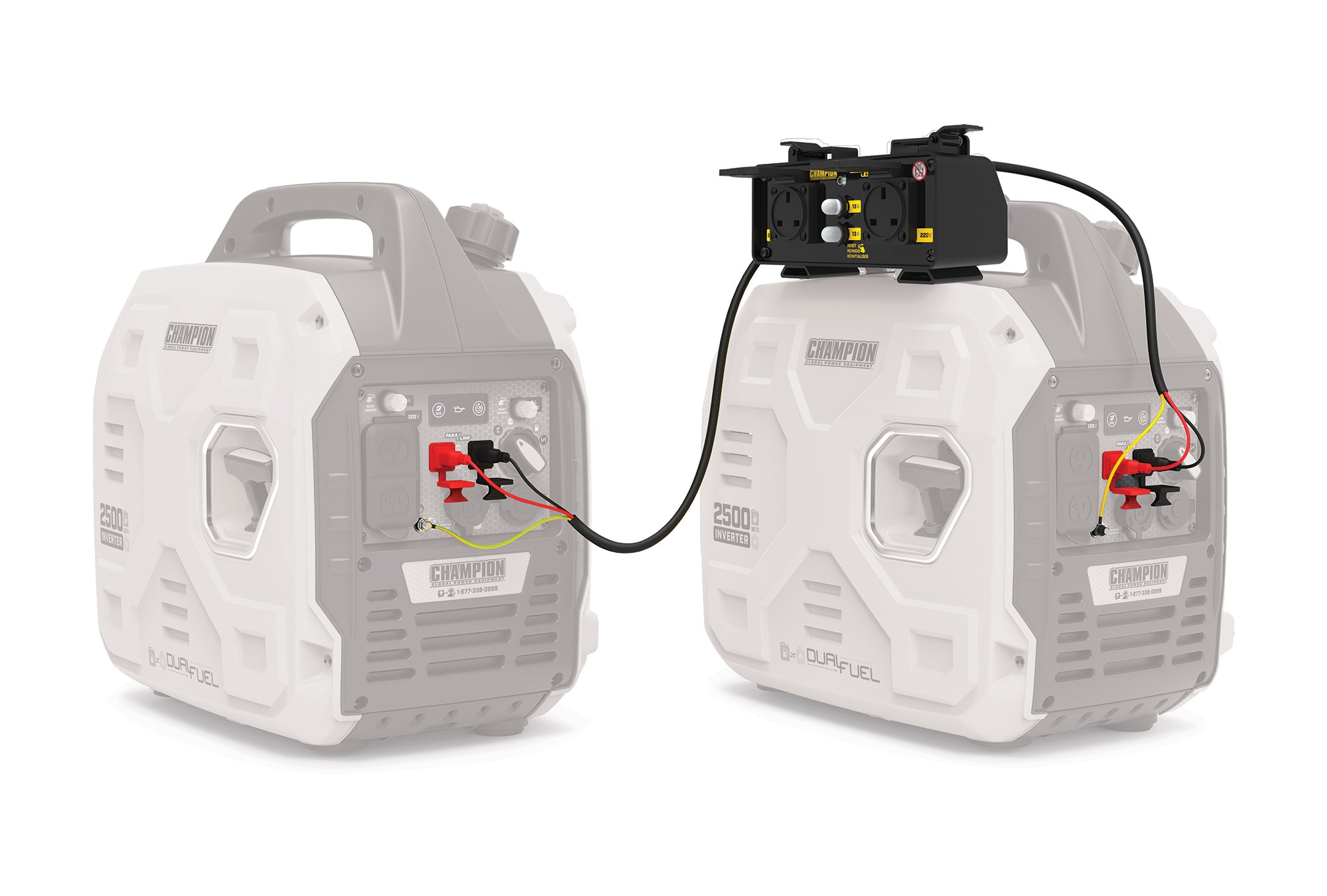

Champion’s Parallel Kits increases your power by connecting two ParaLINK ready inverters. These kits are perfect for when you want the flexibility of using a lightweight on the go inverter to power a few appliances but also want the capability to connect two lightweight and ultra-quiet inverters to get the power of a larger unit when you need it.
WARNING
When paralleling always configure generators in a 'V' formation with both exhaust mufflers pointing the same direction away from the control box, leads and each other.
UK Model
The maximum output of the parallel kit is the total amperage of 25A across two sockets or the rated amperage of each socket up to 13A.

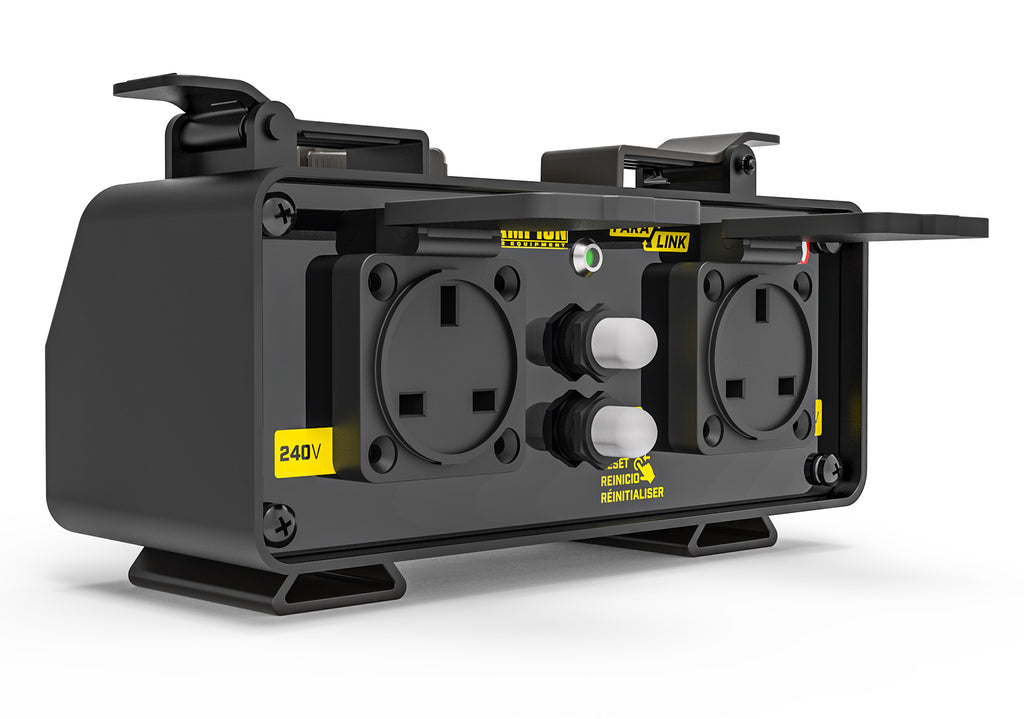

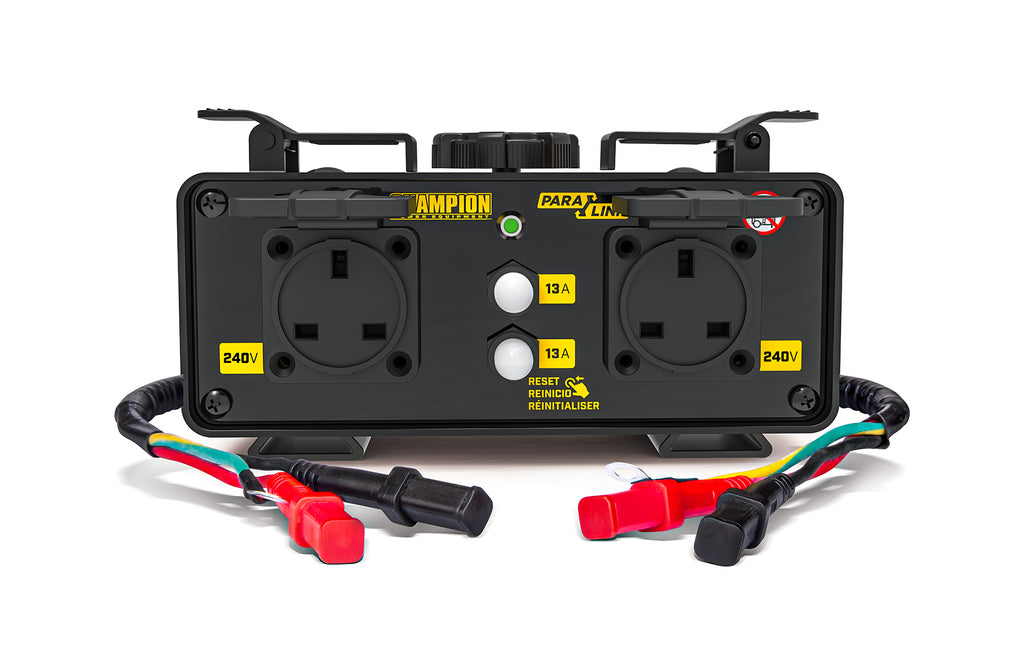

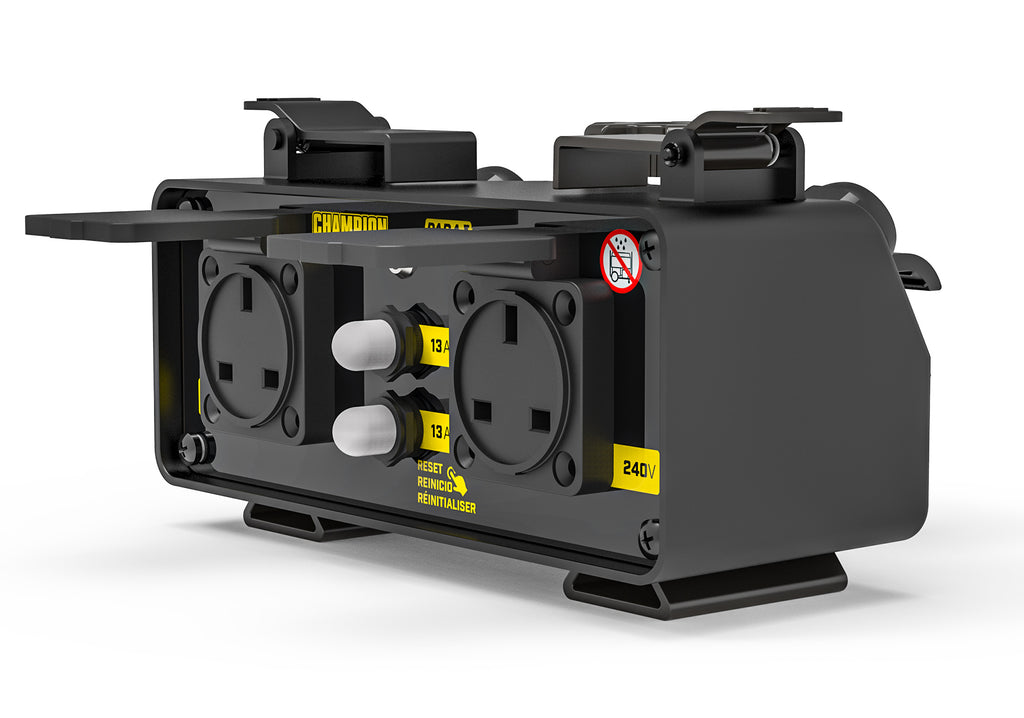

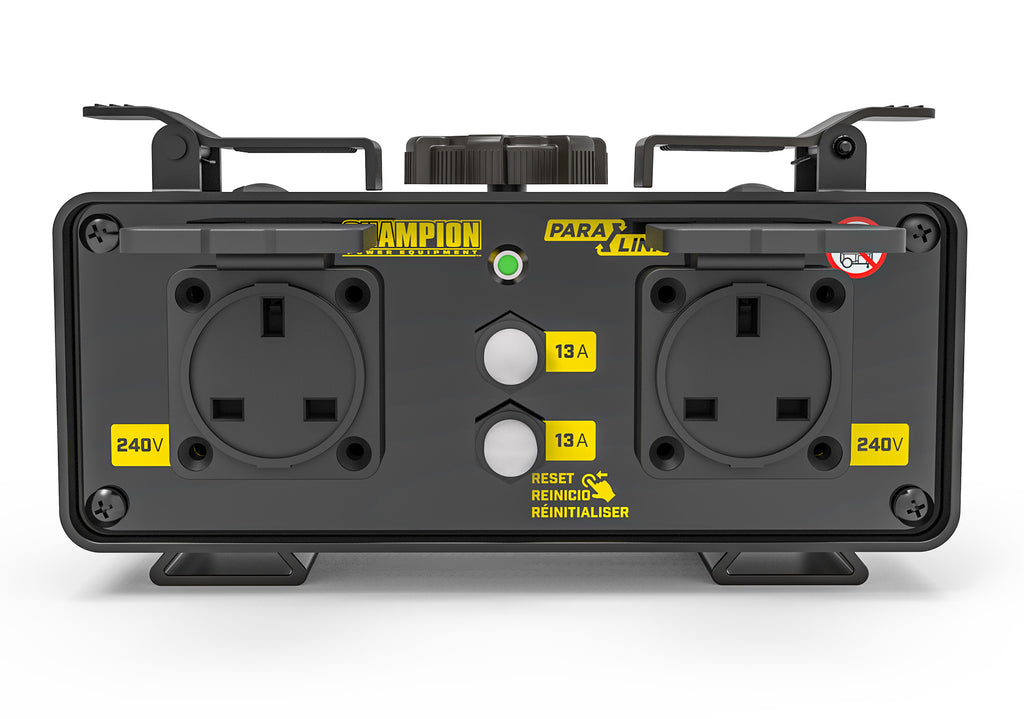

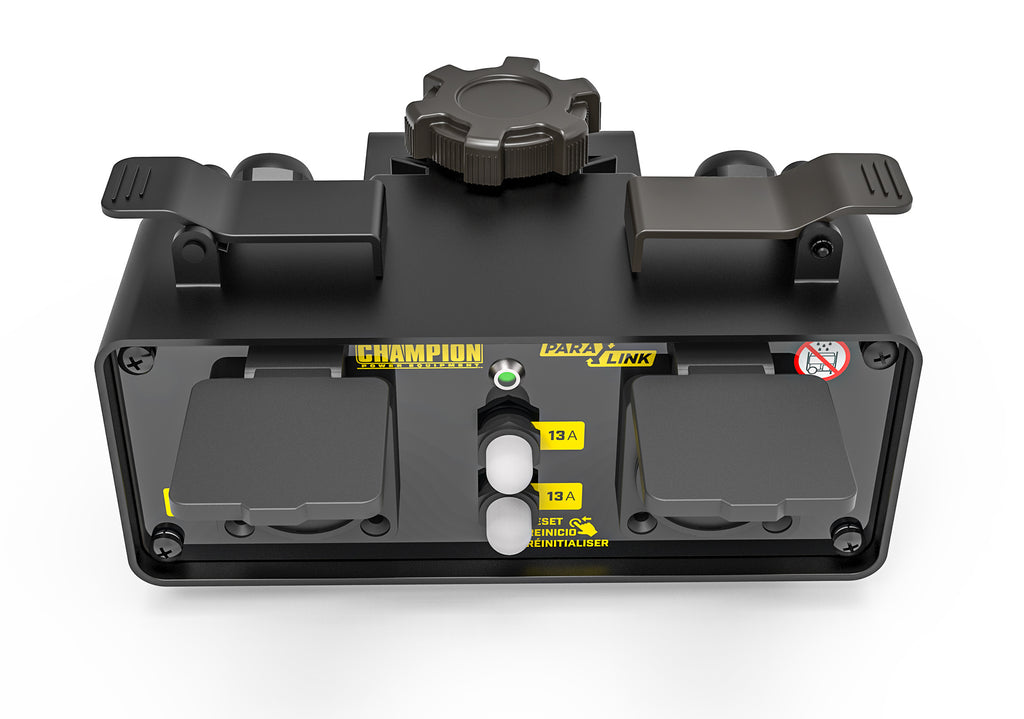

This model is designed for 230V UK market, it allows any Champion inverter model 92001i to be connected up in parallel to create an increase in continuous power of up to 95% of the combined running watts. The control box construction is IP54 protected with 2 x 230V 13A 3 pin household sockets & connection leads to allow easy tool free connection using the paralink socket.
EU Model
The total output of this kit will depend on the size of the inverters connected to it. The maximum output of the parallel kit is the total amperage of 28A across two sockets or the rated amperage of each socket up to 16A.

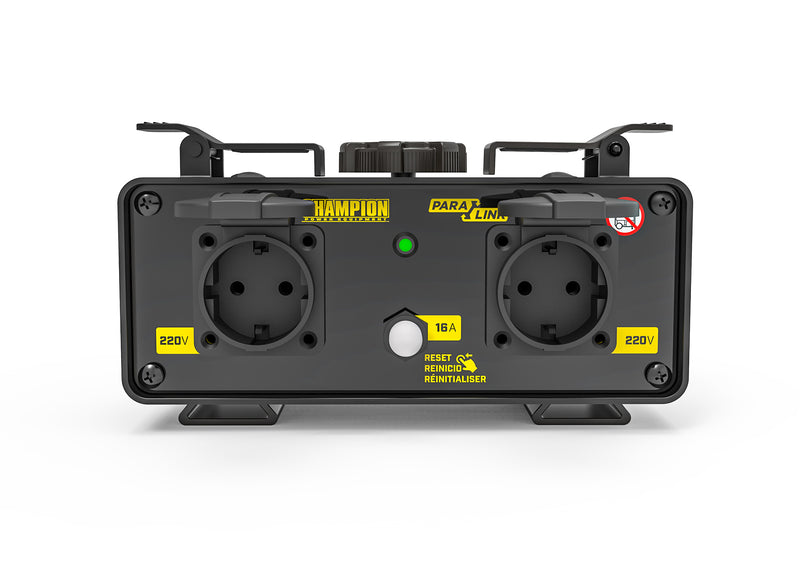

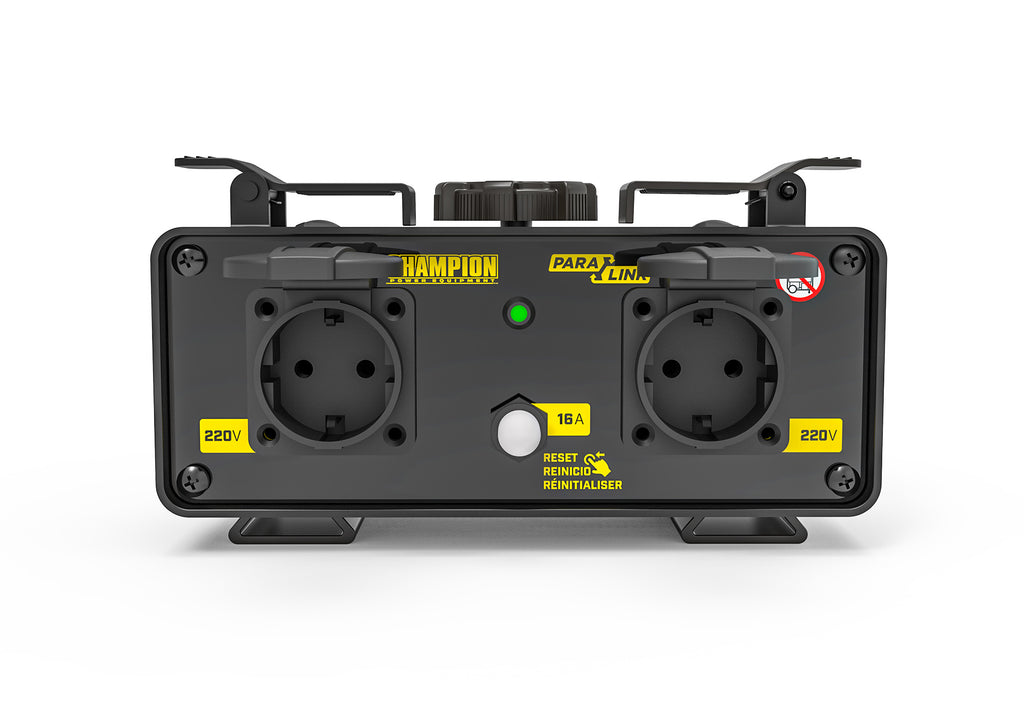

This model is designed for 230V EU market, it allows any Champion inverter model 92001i-EU to be connected up in parallel to create an increase in continuous power of up to 95% of the combined running watts. The control box construction is IP54 protected with 2 x 230V 16A 2 pin schuko sockets & connection leads to allow easy tool free connection using the paralink socket.
This kit can be used with these models:
- 92001i
- 92001i-DF
Expected Power Outputs (95% of combined output) | |||||||
Inverter 1 | Inverter 2 | FINAL OUTPUT | |||||
Model | Max Watts (Petrol) | Rated Watts (Petrol) | Model | Max Watts (Petrol) | Rated Watts (Petrol) | Max Watts (Petrol) | Rated Watts (Petrol) |
92001i (-DF) | 2200 | 1900 | 92001i (-DF) | 2200 | 1900 | 4180 | 3610 |
